Capabilities
Featured CNC Machining Equipment/Capabilities

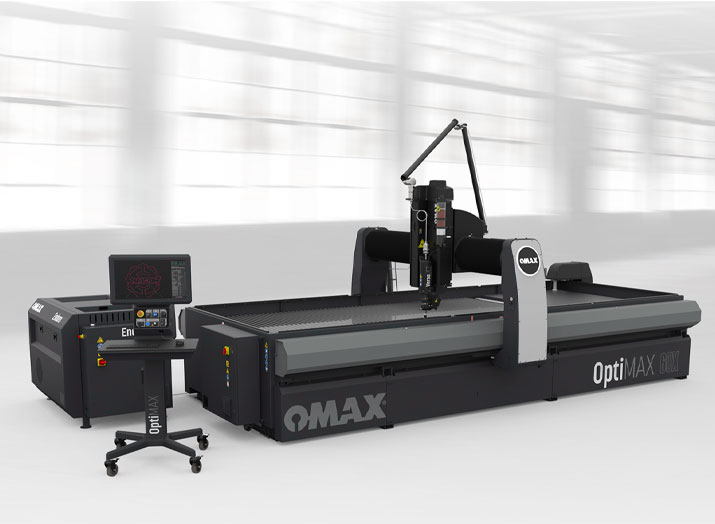

Waterjet Machining
- Cutting envelope of 10' x 5’ 2” (3.04 m x 1.57 m)
- ±0.001" (±0.025 mm) linear position accuracy
- Machines a wide range of materials and thicknesses, from metals and composites to glass and plastics
Laser Engraving
- Hybrid laser system with multi-dimensional vision compensation
CNC Milling/Machining
- Vertical and Horizontal Milling up to 44,000 lbs
- Extensive Expertise in Horizontal and Vertical Milling and Machining
- Vertical and Horizontal Machining Centers
5 Axis Milling
- 5-Axis Milling up to 50"x50"x50"
- True High Speed Five Axis Cutting
- Decreased number of setups and operations
EDM (Electrical Discharge Machining)
- Ability to achieve extremely tight tolerances
- RAM EDM Machines
- Wire EDM Machines
Carbon/Graphite Machining
- Machine travels up to 48"x20"x20"
- Environmentally Controlled Machining Room
- Enclosed High Speed Machining Centers With Down Draft Vacuum
- Specialized Cutting Technology to Machine Abrasive Materials
- Experience Machining Carbon, Graphite & Carbon Matrix Composites
Turning and Grinding
- High Quality Surface Finishes
- CNC and Manual Lathes
- Jig Grinding
- Surface Grinding
- Rotary Grinding
CNC Turning
- CNC Turning Centers
- Precision Component Production
Secondary Operations/Services
- Anodizing
- Plating
- Powder Coating
- Chem Film
- Polishing
- Painting
- Vibratory Finishing - Bowl and Cylindrical Tub
Bridge Cranes
- 8 Large capacity bridge cranes - up to 25 tons
- Enhanced Efficiency - Optimized Material Handling
- Increased Capacity - Allow for Larger Scale Machining
- Improved Safety For Operators, Equipment & Your product
Engineering
- Product Development
- Solid Modeling
- Project Management
- Tool Design
- Reverse Engineering
- Flow 3D - FEA/Thermal Flow Analysis
- Engineering Software: Siemens NX and SolidWorks
Quality/Process Controls
- DCC Coordinate Measuring Machines (CMM) with PC-DMIS
- Laser Scanning
- Manual CMM
- Romer Arm (Portable CMM)

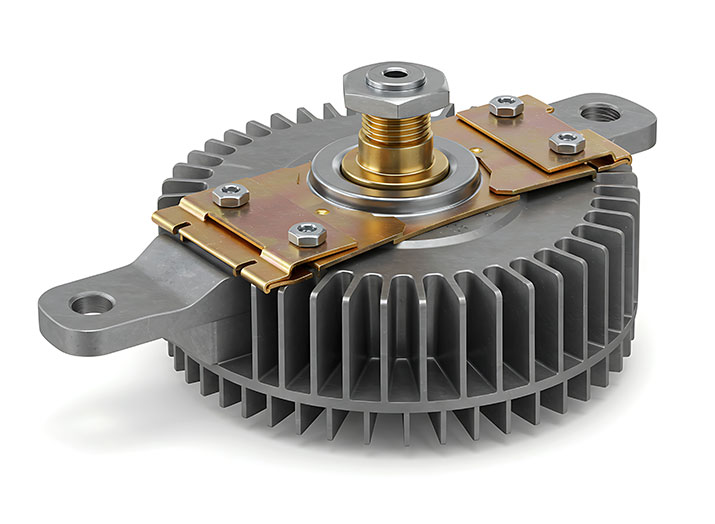

Assembly
- Precision component assembly
- Custom tooling and fixture integration
- Quality assurance and functional testing
- Efficient assembly for small to large-scale projects
- Seamless coordination with machining and engineering services
Fabrication
- Mig Welding
- Tig Welding
- Plasma Cutting
- Precision sheet metal forming and bending
- Custom fabrication for aerospace and industrial applications
What we do
Our team of experienced manufacturing experts are dedicated to helping you bring your ideas and products to life with the highest level of innovation, precision, and quality. Whether you need a custom mold for a specific product, a tool or process for manufacturing, precision machined components, or product engineering services, we have the expertise and resources to deliver exceptional results. We pride ourselves on our ability to collaborate closely with our clients to understand their unique needs and provide customized solutions that exceed their expectations. Contact us today to learn more about how we can help you with your next project.
Material Expertise
At Patterson Mold and Tool, LLC, we specialize in precision machining, milling, engineering, and assembly using a wide range of high-quality materials. Our expertise spans various industries, including die cast, injection molding, and aerospace, ensuring top-tier results for your projects. Below is a list of materials we expertly handle to meet your manufacturing needs:
Plastics
- Nylon
- Delrin
- Ultem
- Teflon
Aluminum
- 2000 Series
- 6000 Series
- 7000 Series
Steel
- 4140
- H1020
- A572
- A500
- A514
Tool Steel
- H13
- S7
- A2
- H11
Stainless Steel
- 304
- 316
- 321
- 4000 Series
- 15-5 PH
- 17-4 PH
- Nitronic 60
- 218
Specialty Metals
- Titanium
- Tungsten
- Inconel
- Invar 36
